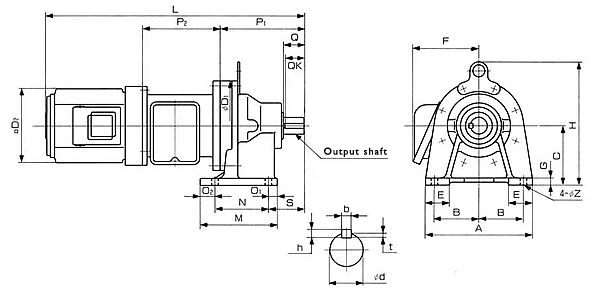

Unit with cyclo speed reducer (Cyclo pack) |
|
Unit:mm |
Type | CHHCM02-6095 | Shaft direction | Shaft edge | |||
Diameter direction | A | 180 | L | 436 | Q | 35 |
B | 75 | M | 130 | QK | 32 | |
C | 100 | N | 90 | d | 28 | |
D1 | 150 | O1 | 15 | b | 8 | |
D2 | 124 | O2 | 25 | h | 7 | |
E | 40 | P1 | 142 | t | 4 | |
F | 111 | P2 | 131 | |||
G | 12 | S | 60 | |||
H | 207 | Z | 11 | |||
